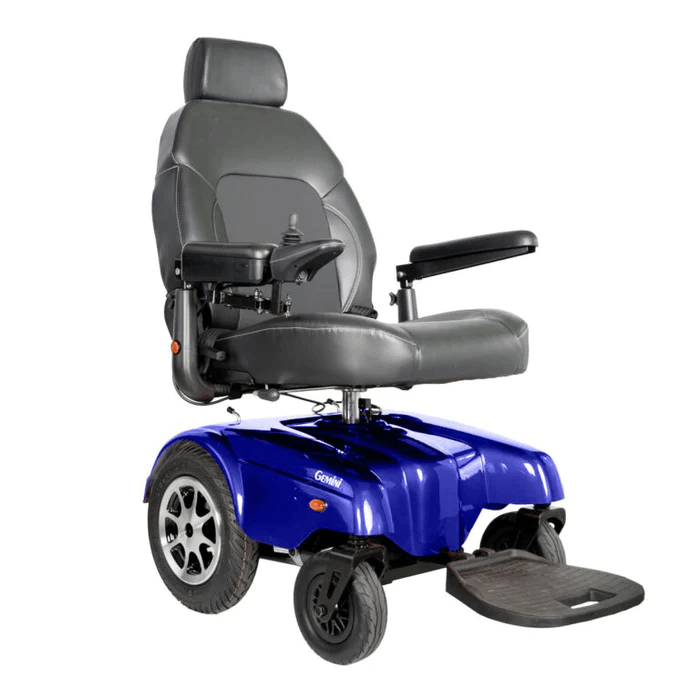

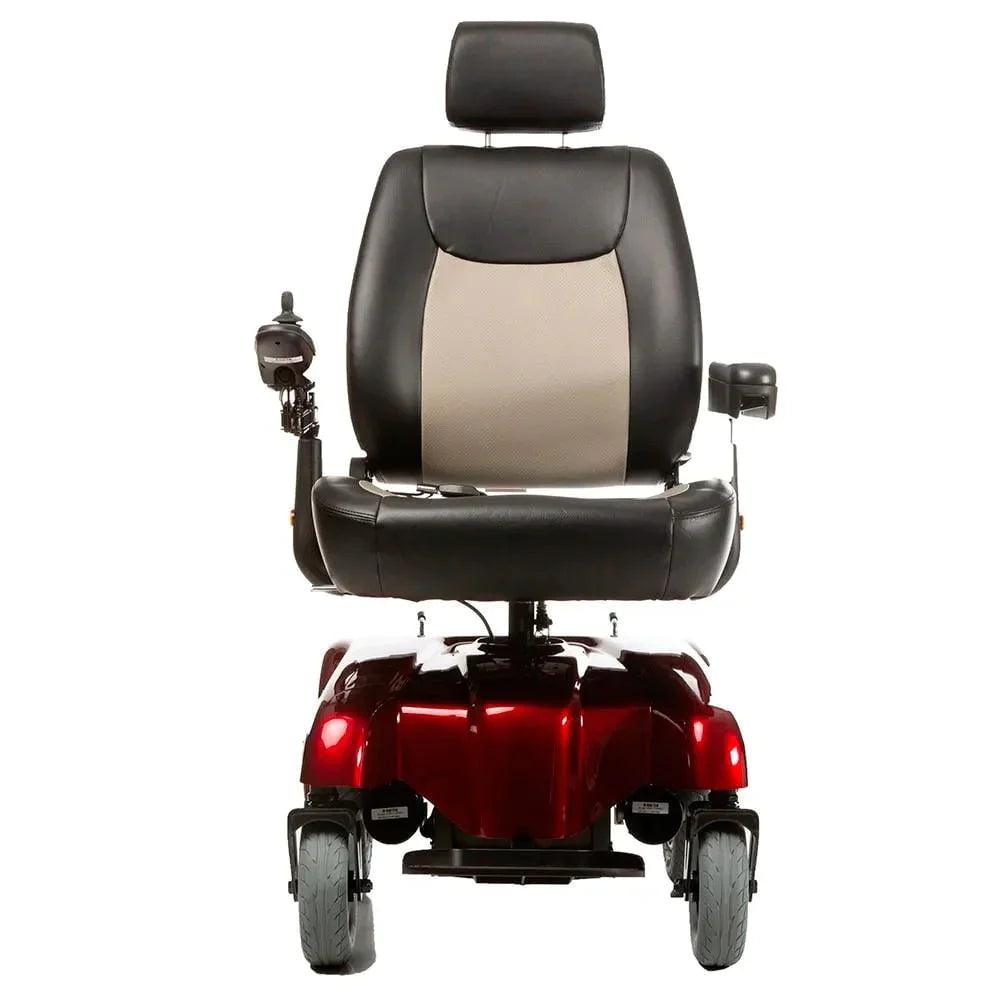

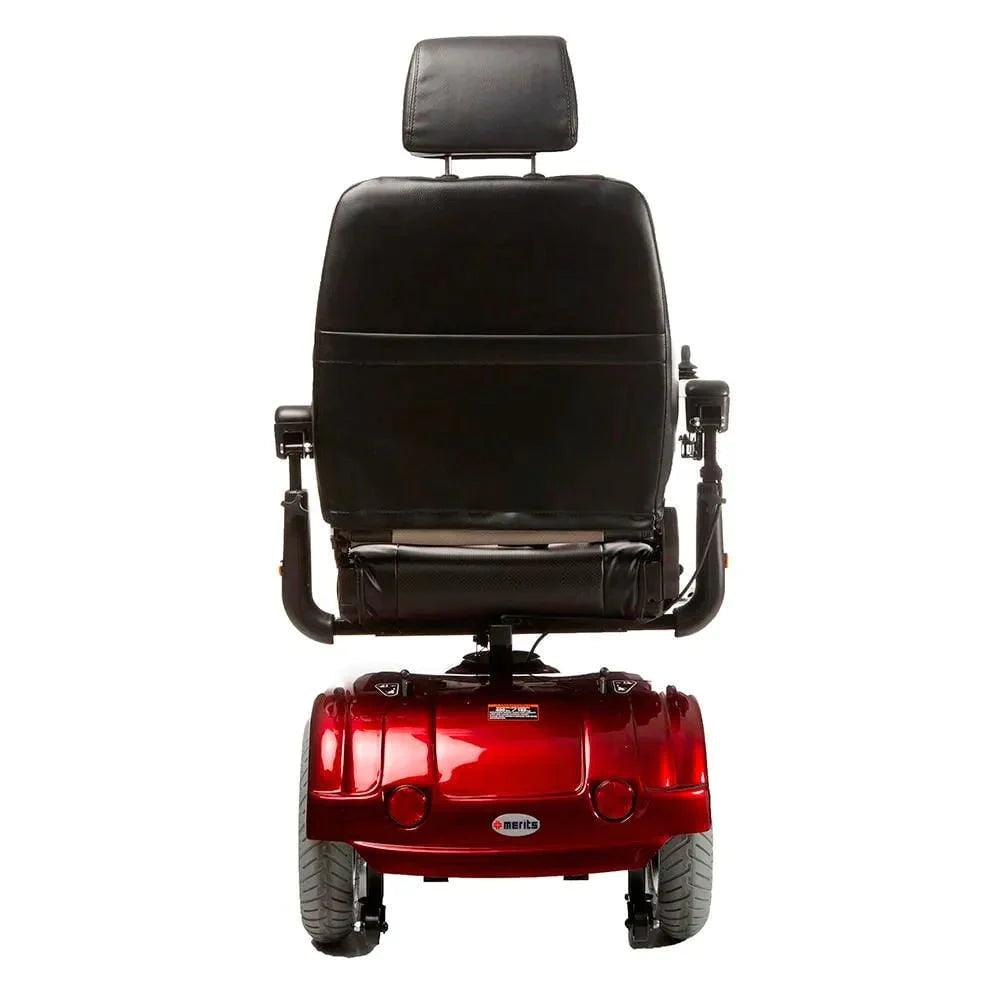

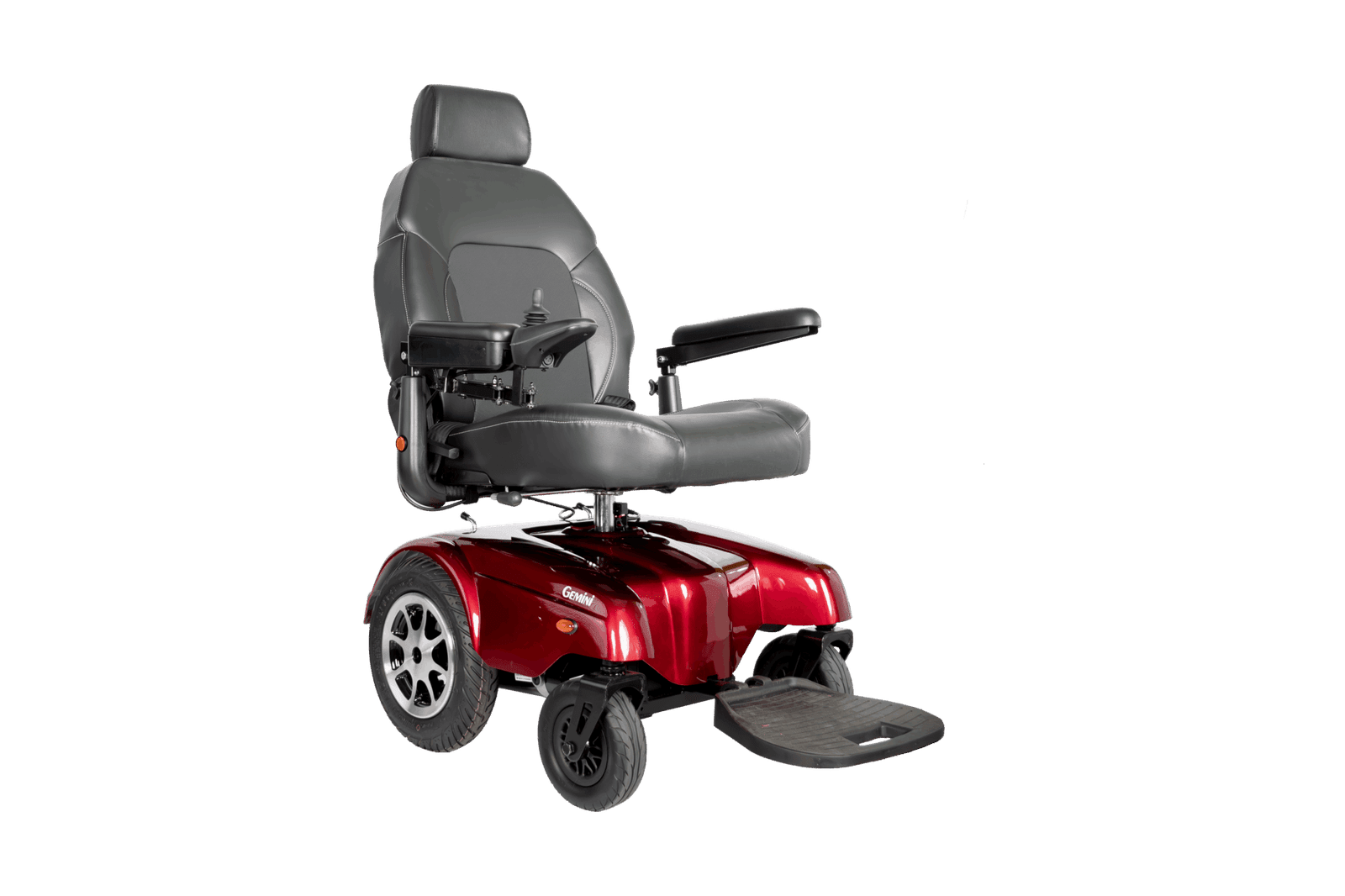

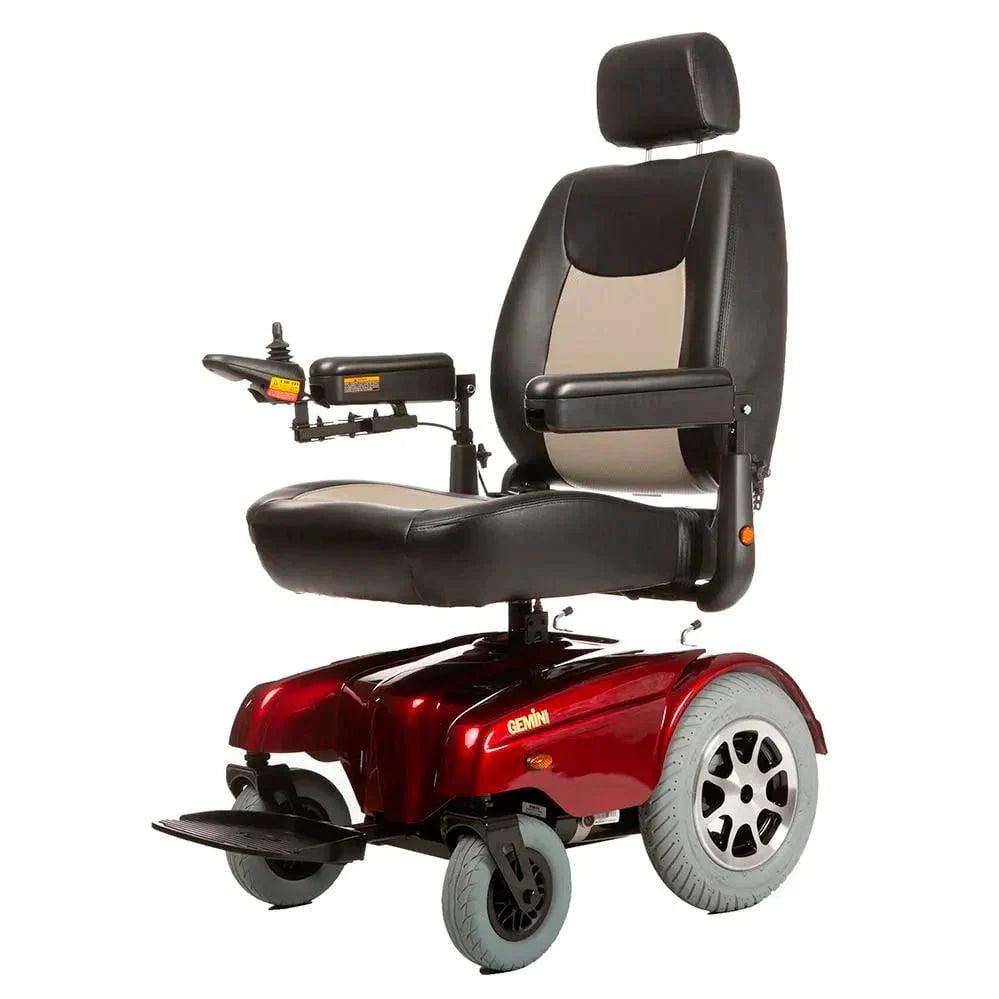

Merits Health Gemini Heavy-Duty Power Wheelchair

free shipping
Save $1,152.00
Original Price $4,359.00
Current Price $3,207.00
Seat Style

Notify me when back in stock

Merits Health Gemini Heavy-Duty Power Wheelchair: Empower Your Mobility

Do you want a strong rear-wheel drive power chair with a high weight limit and an impressive battery life? Look no further than the Merits Health Gemini P301! This power wheelchair is a true powerhouse, providing exceptional performance and comfort.

Merits Health Gemini Heavy-Duty Power Wheelchair

High Weight Capacity & Comfort Seat:

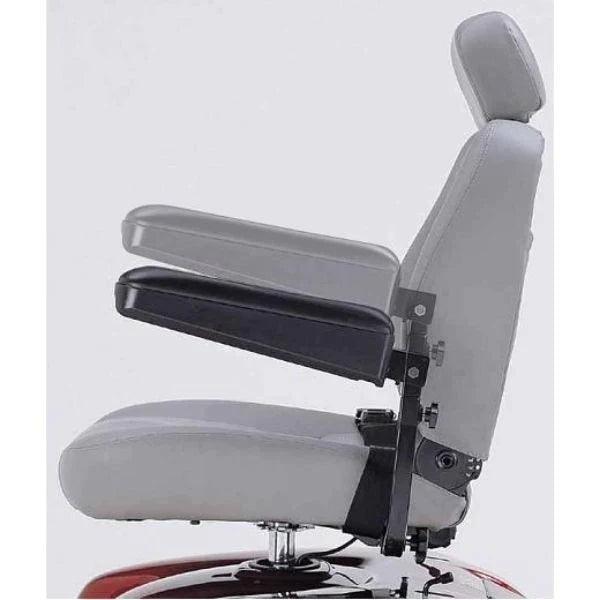

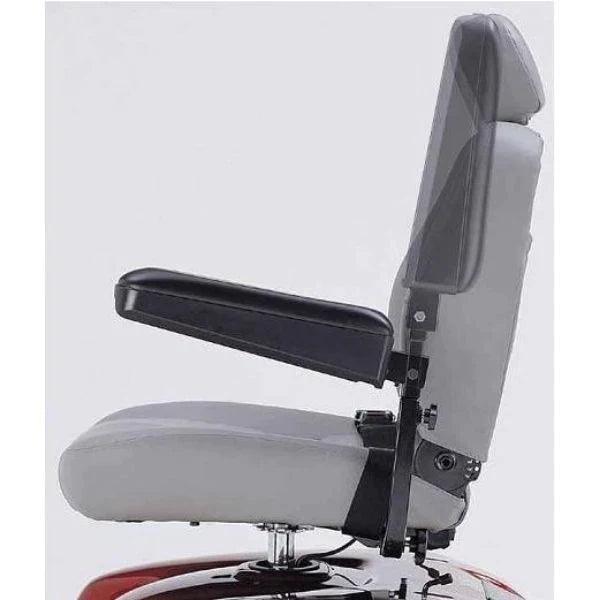

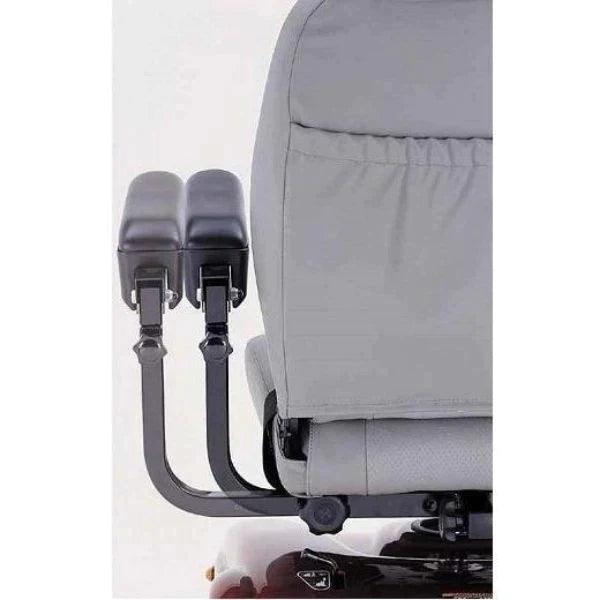

The Gemini offers an incredible 450 lbs weight capacity, making it one of the top options for heavy-duty power wheelchairs. For added convenience, there is the choice to upgrade to an elevating seat, allowing for a 10-inch adjustment in seat height. Keep in mind that this option reduces the weight capacity to 350 lbs. The standard seat size is a spacious 22" x 22", with swivel, tilt-back, and fold-down features, making it a standout among other high weight capacity power chairs. In addition, the armrests can be flipped up and adjusted to provide even more seating space for the user.

Merits Health Gemini Heavy-Duty Power Wheelchair

Long Battery Range & Fast Speed:

The Gemini is powered by two 50AH batteries, allowing for a remarkable range of 20 miles with each charge.

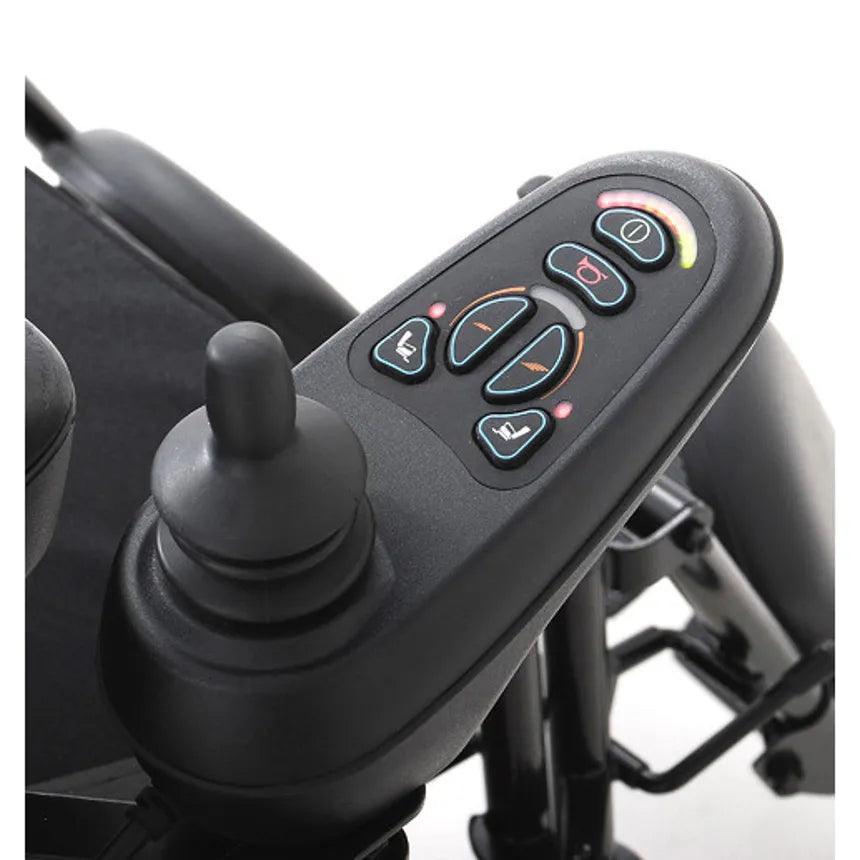

The charging process is effortless, as the charger can be conveniently plugged into the joystick without the need to bend or crouch. Once fully charged, the charger automatically turns off, eliminating any worries about overcharging.

Additionally, while other power wheelchairs typically have a top speed of 4 mph, the Gemini offers an enhanced top speed of 5 mph, giving you an even greater sense of speed and independence.

Merits Health Gemini Heavy-Duty Power Wheelchair

Excellent Choice for Indoor & Outdoor Use:

Experience the versatility of the Gemini power wheelchair, perfect for both indoor and outdoor use.

With adjustable arms, a swing-away joystick, a 22" x 22" seat, a seatbelt, flip-up armrests, and a flip-up footplate, this chair offers maximum comfort and convenience. Trust in the reliable reputation of Merits Health Products, with over 30 years of experience in the mobility field.

Merits Health Gemini Heavy-Duty Power Wheelchair

Merits Health Gemini Benefits & Features:

  • High Weight Capacity: Supports up to 450 lbs, with an optional elevating seat feature reducing it to 350 lbs for added versatility.
  • Extended Battery Life: Enjoy a freedom-filled range of up to 20 miles on a single charge with its dual 50AH batteries.
  • Enhanced Speed: Outpaces traditional models with a top speed of 5 mph.
  • Indoor & Outdoor Versatility: Designed for comprehensive use across varied environments.
  • Adjustable Comfort: Swivel, tilt-back, and fold-down seat capabilities, alongside adjustable armrests for personalized seating.
  • Advanced Maneuverability: Features a 21-inch turning radius and sophisticated controller for smooth navigation.
  • Superior Suspension: Equipped with a unique system for a comfortable ride on all terrains.
  • Convenient Charging: Direct joystick integration for easy charging without bending or crouching.
  • Customizable: Choose from Red or Blue to suit your style.
Merits Health Gemini Heavy-Duty Power Wheelchair


Discover the ultimate in comfort and functionality with the Gemini power wheelchair from Merits Health.

This top-of-the-line model features an impressive weight capacity, adjustable features, advanced suspension system, and superb maneuverability for an unbeatable user experience.

Whether for everyday use or exciting adventures, the Gemini is the perfect choice. It boasts a tight 21-inch turning radius, 4-inch ground clearance, 10-degree incline rating, 14-inch foam-filled drive tires, and advanced suspension for confidence on any terrain.

With a range of up to 20 miles and a max speed of 5 mph, the Gemini is the ultimate power wheelchair for long-distance journeys.


Merits Health Gemini Heavy-Duty Power Wheelchair


  • Product Number: P30111 w/lift, P301
  • Weight Capacity: 450 lbs, 350 lbs
  • Drivetrain: RWD
  • Seat Type: Captain or Pan
  • Seat Width: P301: 22", P30111: 20”
  • Seat Depth: P301: 22”, P30111: 20”
  • Backrest Height: 22"
  • Seat-to-Floor Height: P301: 22”- 24”, P30111: 24” - 29”
  • Elevating Seat: P30111 - 5"
  • Overall Length: 41"
  • Overall Width: 24"
  • Overall Height: 45"
  • Turning Radius: 21"
  • Ground Clearance: 4"
  • Total Weight: 242 lbs, 350 lbs
  • Weight of Heaviest Piece: 126 lbs, 146 lbs
  • Max Speed: 5 mph
  • Per Charge Range: up to 20 miles
  • Motor: DC 24V, 240W
  • Controller: P&G VR2 60A
  • Battery Size (2): 12V/22NF (50AH)
  • Charger: 5A off-board
  • Gradient: 10°
  • Front Wheels: 9" foam filled
  • Drive Wheels: 14" foam filled
  • Rear Wheels: 3" anti-tippers
  • Group: Group 2: Heavy Duty
  • HCPCS Code: K0824/K0825
  • Standard Colors: Red or Blue

Experience the ultimate in mobility with the Merits Health Gemini Heavy-Duty Power Wheelchair. Discover the true meaning of freedom, comfort, and versatility with this remarkable chair, custom-made to fulfill your individual needs. Explore a whole new level of mobility!

Merits Health Gemini Heavy-Duty Power Wheelchair


  1. What distinguishes the Merits Health Gemini from other heavy-duty power wheelchairs?

    • Its remarkable 450 lbs weight capacity, 20-mile battery range, and faster 5 mph speed set it apart, offering exceptional mobility and freedom.
  2. Can I adjust the seat height on the Gemini power wheelchair?

    • Yes, the elevating seat option allows for height adjustments up to 10 inches, enhancing accessibility and user experience.
  3. What makes the Gemini suitable for both indoor and outdoor use?

    • Its versatile design, including adjustable features, a tight turning radius, and durable tires, ensures optimal performance in any setting.
  4. How does the Gemini's battery range compare to other wheelchairs?

    • With up to 20 miles per charge, the Gemini offers one of the longest ranges available, ensuring extensive mobility without frequent recharging.
  5. Is the Gemini's speed adjustable?

    • Absolutely, its top speed of 5 mph is complemented by a programmable controller, allowing users to tailor the speed to their comfort and safety needs.
  6. What advanced features does the Gemini wheelchair offer for maneuverability?

    • It boasts a sophisticated controller and a unique suspension system, ensuring smooth navigation and a comfortable ride across various terrains.
  7. How does the Gemini ensure safety and comfort during use?

    • With its high-density foam seat, adjustable backrest, and seat belt, the Gemini prioritizes user comfort and safety in its design.
  8. Can the armrests and footplate on the Gemini be adjusted?

    • Yes, both the armrests and the aluminum footplate offer adjustments for height and angle, ensuring a custom fit for each user.
  9. What options are available for the Gemini's controller?

    • Users can choose between a programmable controller for customized settings or a non-programmable option for simplicity and ease of use.
  10. How does the Gemini accommodate users of different sizes?

    • Its spacious 22" wide captain's seat, adjustable armrests, and the option for an elevating seat cater to a wide range of user sizes and preferences.
